Snap Hooks and Shackles

Onboard, every gram of tension passes through a shackle or a snap hook. Underestimating the selection of these small components creates unnecessary risks, from losing a fender to a line failure during a gust. When we talk about deck hardware, the distinction between AISI 304 and AISI 316 is not a technical nicety but a necessity to resist corrosion in a marine environment. At Nautiba we start from there: we assess the actual application with you, whether it is for a halyard under constant load or a utility lashing.

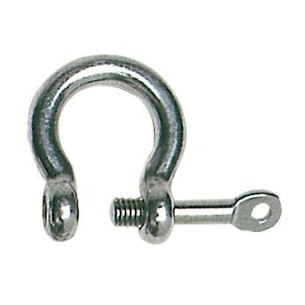

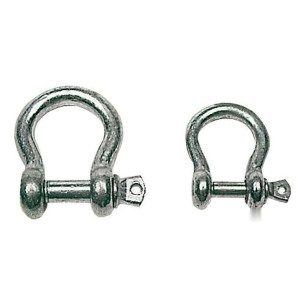

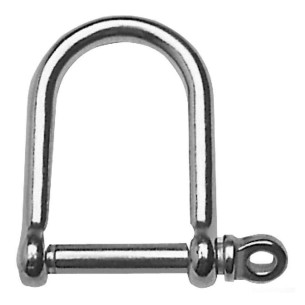

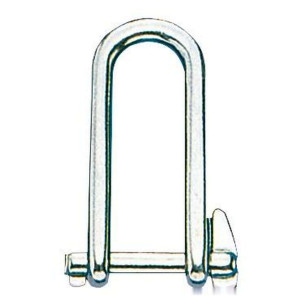

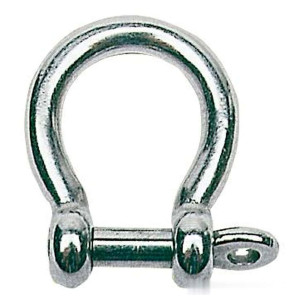

Our shop experience tells us that there is no universal part. A bow shackle has different load dynamics than a D-shackle, just as a fixed-eye snap hook behaves differently from a swivel-eye model. Before deciding, always verify the declared Safe Working Load (SWL) and make sure the dimensions are compatible with the lines or chains you will be using. Avoid mixing different metals to prevent galvanic corrosion, a mistake that leads to seizure that is very hard to undo.

Choosing Nautiba means having the certainty of receiving the component suited to your purpose. We do not simply ship a product; we verify that your choice is consistent with the expected load and the operating environment. If you have doubts about compatibility between the line diameter and the snap hook opening, ask for support before proceeding: we eliminate inefficiencies and returns together, going straight to the solution you really need on deck.

How to navigate snap hook and shackle selection

Choosing the right nautical connector requires attention to a few technical factors to guarantee the safety of your running rigging.

Assess the Safe Working Load (SWL): never exceed the declared limit, keeping in mind that dynamic loads or shock loads increase the stress.
Favor AISI 316 stainless steel: its molybdenum content makes it more resistant to salt corrosion than AISI 304, especially if the part is permanently exposed outside.

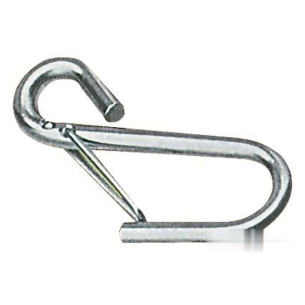

Check the closure type: for maneuvers requiring speed, snap hooks with a locking collar offer extra security, while for fixed installations a screw-pin shackle is the most reliable choice.
Verify the fit: make sure the diameter of the line or chain does not force the shackle to bear sideways, as this reduces the nominal breaking load (BL).

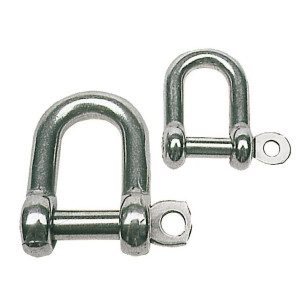

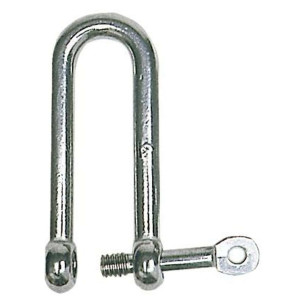

What distinguishes an AISI 316 stainless steel shackle?

A marine shackle must be manufactured with processes that guarantee no porosity and a precise surface finish. The material must be AISI 316 stainless steel to resist oxidation. A proper component features threading machined to tight tolerances that allows smooth tightening without binding.

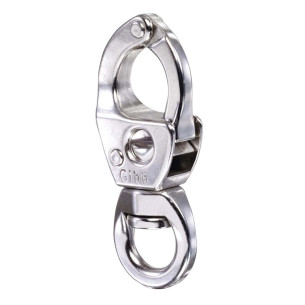

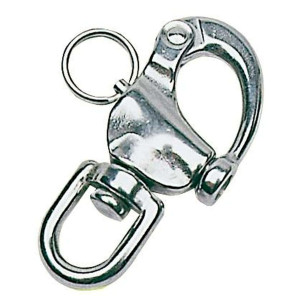

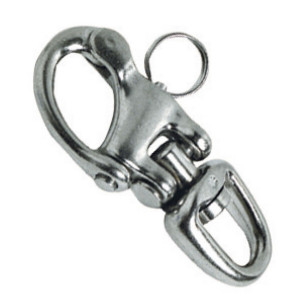

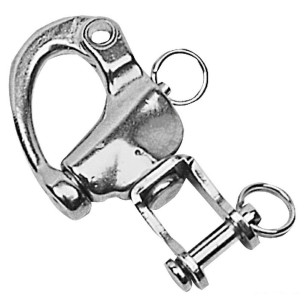

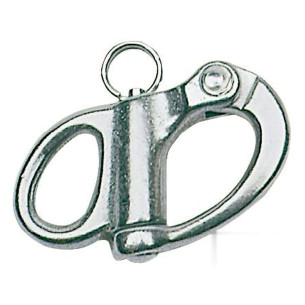

Why is a swivel-eye snap hook useful?

The swivel-eye model allows a line or sheet to rotate freely without twisting. It is essential in all applications where the line may experience torsion during use, preventing the load from bearing abnormally on the snap hook itself.

How do you prevent a shackle pin from seizing?

Seizure often occurs because salt crystallizes in the threads. To prevent it, rinse with fresh water after every outing and occasionally apply a thin coat of lithium grease or a dedicated lubricant to the pin threads.
