Managing an NMEA 2000 network means taking care of data transmission between your onboard instruments. The protocol was designed to be plug-and-play, but the reality at sea is different: moisture, vibration, and oxidized contacts can corrupt the signal or cause sudden loss of critical data such as GPS position or depth readings. Electrical continuity is the key factor in preventing a system from resetting or displaying configuration errors.

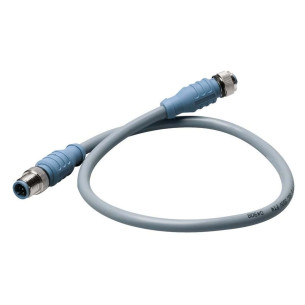

When assembling a network, the first mistake to avoid is mixing components from unreliable sources. Although the standard is universal, the IP rating of connectors varies considerably. We draw on our technical experience to guide you in selecting the correct backbone cables and drop cables. If your installation includes more than three instruments, the bus must be sized correctly to prevent voltage drops that would destabilize sensors located far from the power source.
The Nautiba approach goes beyond selling individual components. We verify that the parts meet the insulation requirements needed for a marine environment and support you in configuring the network to minimize interference. If you have any doubts about compatibility between existing devices and new elements to add to the bus, contact us before proceeding. We can analyze your network diagram and tell you which terminators to place at each end to properly close the circuit.
Maintaining an NMEA 2000 network requires specific care. Never force the locking connectors: tightening must be done by hand, without pliers, to avoid damaging the O-ring seals that provide the IP protection rating. A properly executed installation should allow easy inspection of components and quick replacement in the event of accidental failure at a single network node.
How to build a reliable NMEA 2000 network
- Always verify that every network has exactly two 120-ohm terminators, one at each end of the backbone.
- Avoid pulling cables too tight: always leave a small stress-relief loop near the connectors.
- Use only connectors rated IP67 or higher to prevent internal oxidation caused by condensation.
- Make sure the power cable is connected to a line protected by a fuse sized for the total network load.
- Label cables at both ends if the network is complex, making future diagnostics easier in the event of signal loss.
Why does the network lose data while underway?
The most common cause is a voltage drop in the backbone or an oxidized connection. Check that the locking rings are properly tightened and that the voltage measured across the network is close to the nominal 12V.
Can I mix instruments from different brands?
Yes, the NMEA 2000 protocol is open and standardized. You can connect devices from different manufacturers as long as they all comply with the wiring standard and use standard M12 connectors.
What do I need to expand an existing network?
You need an additional T-piece connector for each new instrument and a drop cable of the length required to reach the new device from the main backbone.
Is it necessary to isolate the network from the engine's power supply?
It is strongly recommended to power the NMEA 2000 network from a dedicated circuit, ideally key-switched, to prevent voltage spikes during engine startup from interfering with sensor stability.
How do I know if a terminator is faulty?
A faulty or missing terminator causes widespread communication errors across the entire network. You can measure the resistance between the CAN-H and CAN-L pins with a multimeter while the network is powered off: the total value should be approximately 60 ohms.
