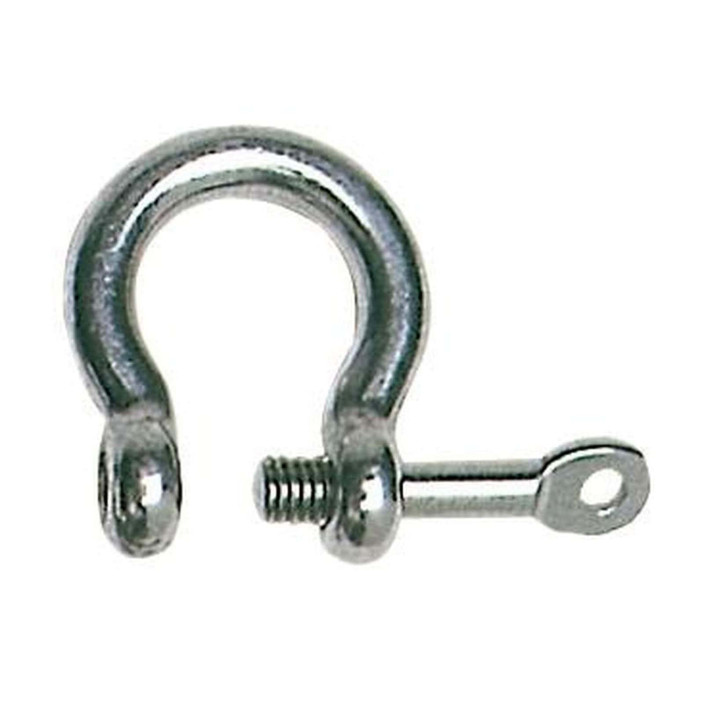

Bow schackle with captive pin AISI 316
Bow schackle with captive pin AISI 316
Bow schackle with captive pin AISI 316
Bow schackle with captive pin AISI 316
Osculati

Bow shackles with captive pin

Product code: F404104
Bow schackle with captive pin AISI 316
Within 24 hours
€1.69
Variant Choice
F404104

The minimum purchase order quantity for the product is 10.

Estimated delivery to Italy: by Tue 3 Nov (for orders received by 1:00PM)
Description
Made of mirror polished AISI 316 stainless steel; fine finish, sliding thread.
8033137080005
08.221.04

Choose the model

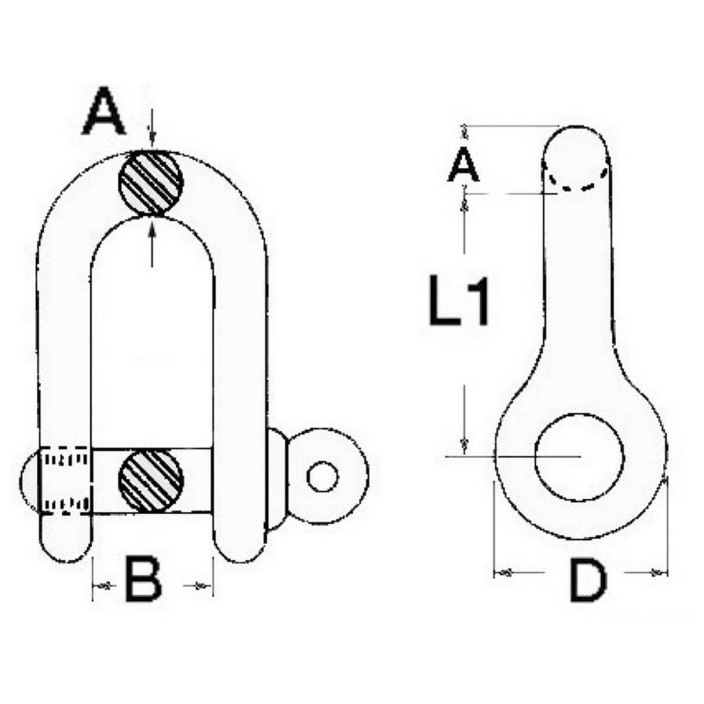

Image Code Add to cart Variant Choice A mm B mm L1 mm D mm pcs Breaking load kg Working load kg Price
F404104
add to cart
 4 mm 4 8 16 9 10 580 145 €1.69
F404105
add to cart
 5 mm 5 10 20 10 10 910 227 €1.76
F404106
add to cart
 6 mm 6 12 24 12 10 1320 330 €1.91
F404108
add to cart
 8 mm 8 16 32 16 10 2370 592 €3.08
F404110
add to cart
 10 mm 10 20 40 20 - 3730 932 €4.77
F404112
add to cart
 12 mm 12 24 48 24 - 5490 1372 €7.26
