BlueWave bronze body 14
BlueWave bronze body 14
Blue Wave

Blue Wave rigging screws

Product code: A175300
BlueWave bronze body 1/4"
Within 3 working days
€38.50 €39.90 -3.51%
Variant Choice
A175300

Estimated delivery to Italy: by Thu 5 Nov (for orders received by 1:00PM)
Description

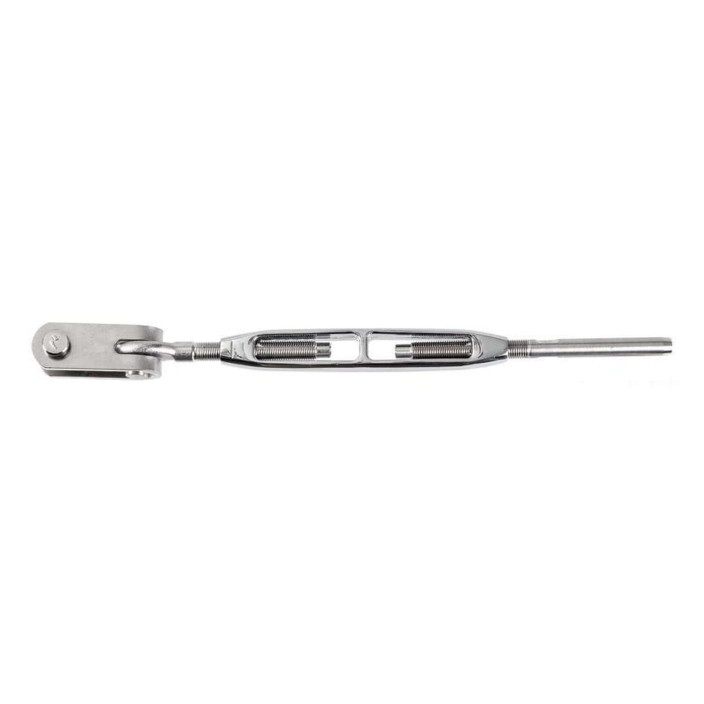

Fitted with chromed brass bottle-screws and AISI stainless steel terminals, to be arranged according to needs.
8033137079504
07.203.01

Choose the model

Image Code Add to cart Variant Choice A+B+D - L2 F H G A+B+C - L1 A+B+C - L2 A+B+D - L1 UNF thread For cable Ø Breaking load Variante Price
A175300
add to cart
 1/4" 163 mm 9,5 mm 8 mm 6,3 mm 255 mm 193 mm 225 mm 1/4" 3 mm 1300 kg Bronze body (A) €39.90 €38.50
A175302
add to cart
 5/16" 192 mm 11 mm 10 mm 8 mm 304-310 mm 228-234 mm 268 mm 5/16" 4 mm 2350 kg Bronze body (A) €47.90 €45.50
A175305
add to cart
 3/8" 229 mm 12 mm 12 mm 9,5 mm 349-364 mm 265-280 mm 313 mm 3/8" 5 mm 3500 kg Bronze body (A) €49.90 €47.80
A175307
add to cart
 7/16" 260 mm 12 mm 15 mm 11 mm 397-408 mm 307-318 mm 350 mm 7/16" 6 mm 4700 kg Bronze body (A) €67.90 €65.50
A175309
add to cart
 1/2" 281 mm 14 mm 18 mm 12,7 mm 438-453 mm 332-347 mm 387 mm 1/2" 7 mm 5400 kg Bronze body (A) €77.90 €74.70
A175311
add to cart
 5/8" 359 mm 18 mm 20 mm 16 mm 536-553 mm 404-421 mm 491 mm 5/8" 8 mm 8000 kg Bronze body (A) €134.50 €126.30
A175313
add to cart
 3/4" 426 mm 24 mm 24 mm 19 mm 625-655 mm 465-495 mm 586 mm 3/4" 10 mm 13000 kg Bronze body (A) €224.50 €215.50
A175320
add to cart
 left 1/4" 163 mm 9,5 mm 8 mm 6,3 mm 255 mm 193 mm 225 mm 1/4" 3 mm 1300 kg Left thread - jointed fork (B) €27.90 €26.20
A175322
add to cart
 left 5/16" 192 mm 11 mm 10 mm 8 mm 304-310 mm 228-234 mm 268 mm 5/16" 4 mm 2350 kg Left thread - jointed fork (B) €33.90 €32.80
A175325
add to cart
 left 3/8" 229 mm 12 mm 12 mm 9,5 mm 349-364 mm 265-280 mm 313 mm 3/8" 5 mm 3500 kg Left thread - jointed fork (B) €43.90 €42.10
A175327
add to cart
 left 7/16" 260 mm 12 mm 15 mm 11 mm 397-408 mm 307-318 mm 350 mm 7/16" 6 mm 4700 kg Left thread - jointed fork (B) €61.90 €59.60
A175329
add to cart
 left 1/2" 281 mm 14 mm 18 mm 12,7 mm 438-453 mm 332-347 mm 387 mm 1/2" 7 mm 5400 kg Left thread - jointed fork (B) €67.90 €65.60
A175331
add to cart
 left 5/8" 359 mm 18 mm 20 mm 16 mm 536-553 mm 404-421 mm 491 mm 5/8" 8 mm 8000 kg Left thread - jointed fork (B) €124.50 €117.50
A175333
add to cart
 left 3/4" 426 mm 24 mm 24 mm 19 mm 625-655 mm 465-495 mm 586 mm 3/4" 10 mm 13000 kg Left thread - jointed fork (B) €229.50 €220.00
A175340
add to cart
 right 1/4" x 3 mm 163 mm 9,5 mm 8 mm 6,3 mm 255 mm 193 mm 225 mm 1/4" 3 mm 1300 kg Right thread - press-fitting terminal (C) €10.95 €10.60
A175342
add to cart
 right 5/16" x 4 mm 192 mm 11 mm 10 mm 8 mm 304-310 mm 228-234 mm 268 mm 5/16" 4 mm 2350 kg Right thread - press-fitting terminal (C) €12.95 €12.60
A175344
add to cart
 right 5/16" x 5 mm 192 mm 11 mm 10 mm 8 mm 304-310 mm 228-234 mm 268 mm 5/16" 5 mm 2350 kg Right thread - press-fitting terminal (C) €13.45 €13.20
A175345
add to cart
 right 3/8" x 5 mm 229 mm 12 mm 12 mm 9,5 mm 349-364 mm 265-280 mm 313 mm 3/8" 5 mm 3500 kg Right thread - press-fitting terminal (C) €14.45 €14.10
A175346
add to cart
 right 3/8" x 6 mm 229 mm 12 mm 12 mm 9,5 mm 349-364 mm 265-280 mm 313 mm 3/8" 6 mm 3500 kg Right thread - press-fitting terminal (C) €24.90 €23.40
A175347
add to cart
 right 7/16" x 6 mm 260 mm 12 mm 15 mm 11 mm 397-408 mm 307-318 mm 350 mm 7/16" 6 mm 4700 kg Right thread - press-fitting terminal (C) €25.90 €24.60
A175348
add to cart
 right 7/16" x 7 mm 260 mm 12 mm 15 mm 11 mm 397-408 mm 307-318 mm 350 mm 7/16" 7 mm 4700 kg Right thread - press-fitting terminal (C) €32.90 €31.80
A175349
add to cart
 right 1/2" x 7 mm 281 mm 14 mm 18 mm 12,7 mm 438-453 mm 332-347 mm 387 mm 1/2" 7 mm 5400 kg Right thread - press-fitting terminal (C) €34.90 €33.80
A175350
add to cart
 right 1/2" x 8 mm 281 mm 14 mm 18 mm 12,7 mm 438-453 mm 332-347 mm 387 mm 1/2" 8 mm 5400 kg Right thread - press-fitting terminal (C) €36.90 €35.70
A175351
add to cart
 right 5/8" x 8 mm 359 mm 18 mm 20 mm 16 mm 536-553 mm 404-421 mm 491 mm 5/8" 8 mm 8000 kg Right thread - press-fitting terminal (C) €44.90 €43.20
A175352
add to cart
 right 5/8" x 10 mm 359 mm 18 mm 20 mm 16 mm 536-553 mm 404-421 mm 491 mm 5/8" 10 mm 8000 kg Right thread - press-fitting terminal (C) €54.90 €52.70
A175353
add to cart
 right 3/4" x 10 mm 426 mm 24 mm 24 mm 19 mm 625-655 mm 465-495 mm 586 mm 3/4" 10 mm 13000 kg Right thread - press-fitting terminal (C) €72.90 €69.90
A175354
add to cart
 right 3/4" x 12 mm 426 mm 24 mm 24 mm 19 mm 625-655 mm 465-495 mm 586 mm 3/4" 12 mm 13000 kg Right thread - press-fitting terminal (C) €83.90 €80.60
A175360
add to cart
 right 1/4" 163 mm 9,5 mm 8 mm 6,3 mm 255 mm 193 mm 225 mm 1/4" 3 mm 1300 kg Right thread - fixed fork (D) €13.45 €13.10
A175362
add to cart
 right 5/16" 192 mm 11 mm 10 mm 8 mm 304-310 mm 228-234 mm 268 mm 5/16" 4 mm 2350 kg Right thread - fixed fork (D) €17.95 €17.20
A175365
add to cart
 right 3/8" 229 mm 12 mm 12 mm 9,5 mm 349-364 mm 265-280 mm 313 mm 3/8" 5 mm 3500 kg Right thread - fixed fork (D) €25.90 €24.40
A175367
add to cart
 right 7/16" 260 mm 12 mm 15 mm 11 mm 397-408 mm 307-318 mm 350 mm 7/16" 6 mm 4700 kg Right thread - fixed fork (D) €32.90 €31.90
A175369
add to cart
 right 1/2" 281 mm 14 mm 18 mm 12,7 mm 438-453 mm 332-347 mm 387 mm 1/2" 7 mm 5400 kg Right thread - fixed fork (D) €32.90 €31.90
A175371
add to cart
 right 5/8" 359 mm 18 mm 20 mm 16 mm 536-553 mm 404-421 mm 491 mm 5/8" 8 mm 8000 kg Right thread - fixed fork (D) €63.90 €61.70
A175373
add to cart
 right 3/4" 426 mm 24 mm 24 mm 19 mm 625-655 mm 465-495 mm 586 mm 3/4" 10 mm 13000 kg Right thread - fixed fork (D) €134.50 €127.10
