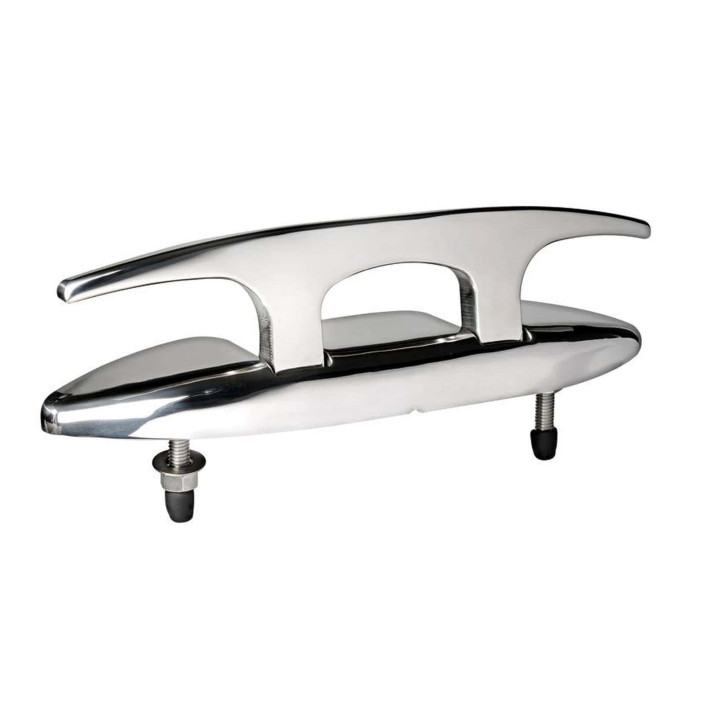

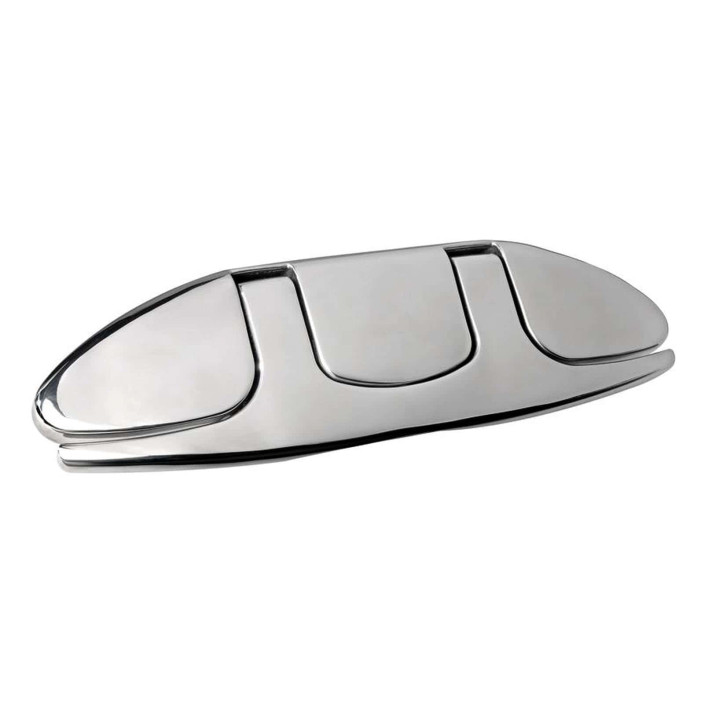

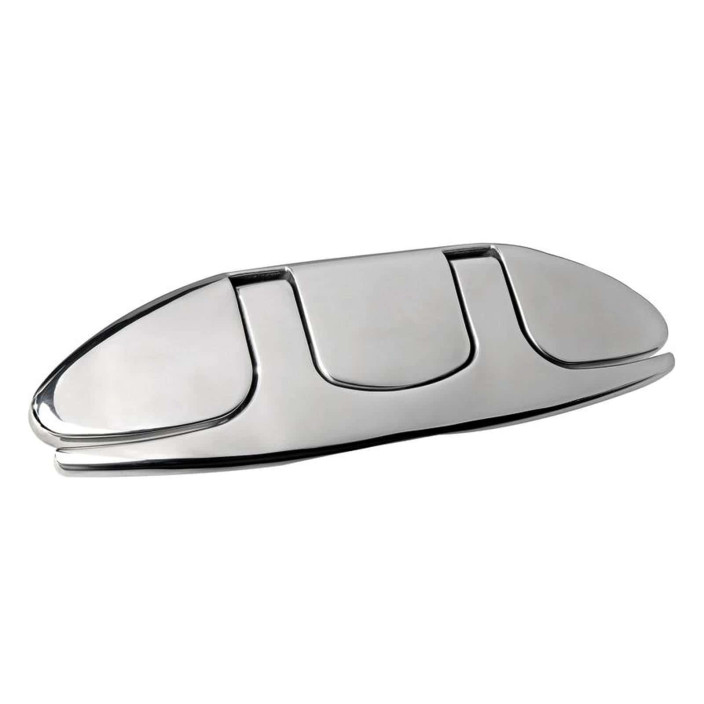

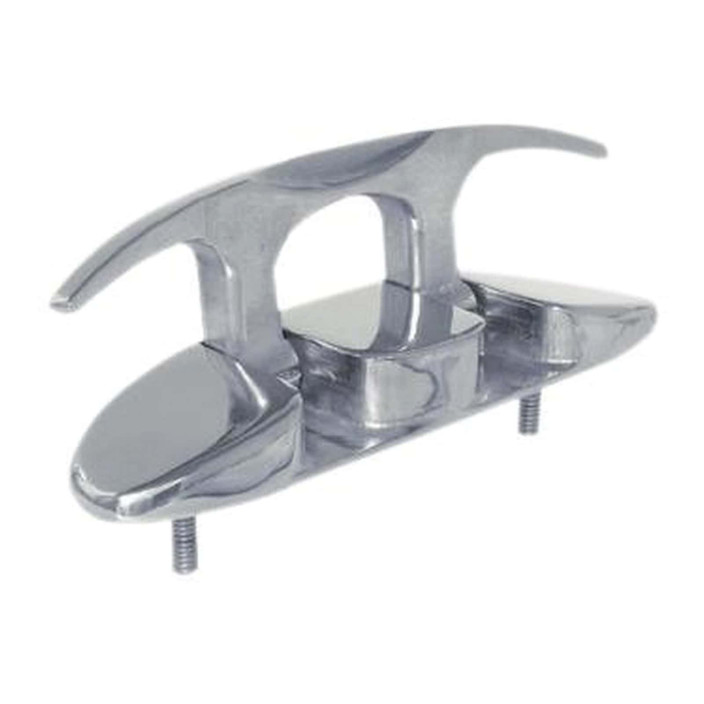

Pop-up cleat

Name: Pop-up cleat
Brand: Osculati
SKU: A1629
Price: 41.8 EUR
Availability: InStock

Product code: A162900

Poller

Within 3 working days

€41.80 €47.07 -11.2%

Variant Choice

Selected variant code A162900

Estimated delivery to Italy: by Fri 6 Nov (for orders received by 1:00PM)

Update prices and delivery times for your country

Description

A compct and ergonomic design solution. Made of mirror-polished AISI316 stainless steel. Easy to install, no recess fit required.

EAN13 8033137132100

MPN 40.142.01

Choose the model

Code	Add to cart	Variant Choice	Length mm	Breaking load kg	Width mm	Overhang mm	Fixing	Centre distance mm	Price
A162900	add to cart	115mm - Ø6x40mm studs	115	700	45	15	Studs Ø 6x40 mm (included)	67	~~€47.07~~ €41.80
A162902	add to cart	172mm - Ø8x45mm studs	172	1300	65	22	Studs Ø 8x45 mm (included)	115	~~€80.90~~ €78.10
A162905	add to cart	350mm - Ø16x80mm studs	350	3000	104	36	Studs Ø 16x80 mm (excluded)	219	~~€349.50~~ €292.10
A162901	add to cart	143mm - Ø8x45mm studs	143	1200	53	21	Studs Ø 8x45 mm (included)	92	~~€70.90~~ €68.30
A162910	add to cart	115mm - Screw fixing	115	700	45	15	Screws (excluded)	67	~~€35.90~~ €34.10
A162912	add to cart	172mm - Screw fixing	172	1300	65	22	Screws (excluded)	115	~~€70.90~~ €68.00
A162913	add to cart	210mm - Screw fixing	210	1800	70	25	Screws (not included)	137	~~€119.50~~ €112.30
A162914	add to cart	270mm - Screw fixing	270	2600	83	30	Screws (excluded)	172	~~€224.50~~ €213.70
A162911	add to cart	143mm - Screw fixing	143	1200	53	21	Screws (not included)	92	~~€66.90~~ €64.50
