Watertight mount circuit breaker
Watertight mount circuit breaker
Watertight mount circuit breaker
Watertight mount circuit breaker
Watertight mount circuit breaker
Watertight mount circuit breaker
Osculati

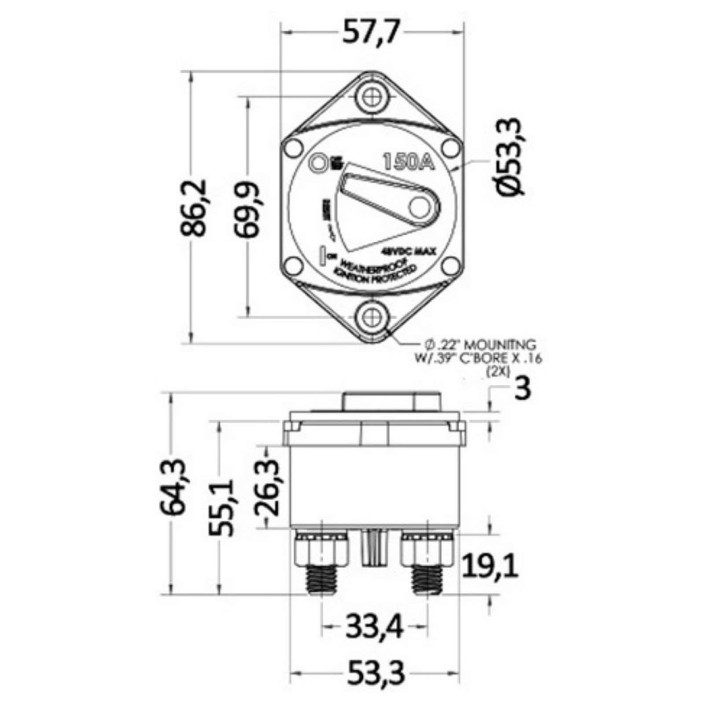

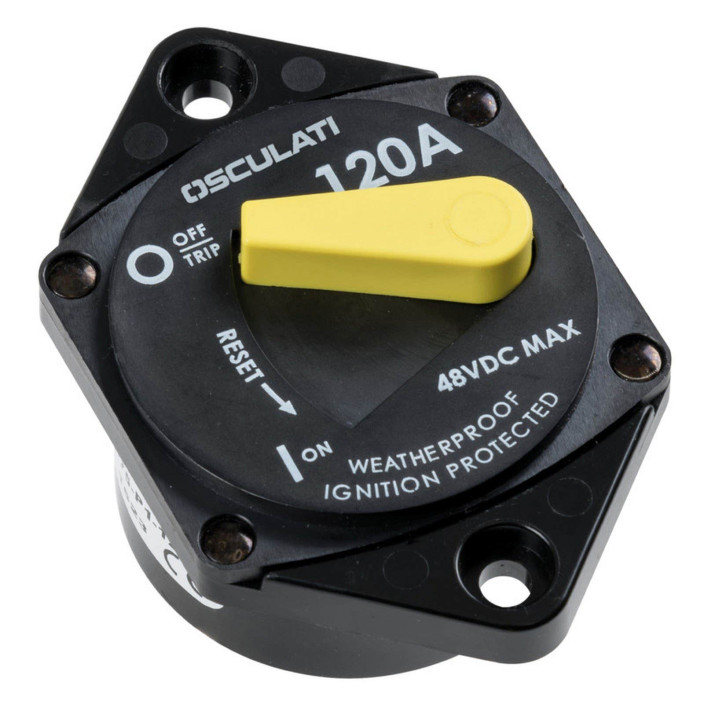

Waterproof magnetic circuit breaker for winch and bow thruster, with 5/16" electrical terminals OSCULATI

Product code: G030201
Watertight mount circuit breaker
Within 3 working days
€94.10 €116.55 -19.26%
Variant Choice
G030201

Estimated delivery to Italy: by Tue 22 Sep (for orders received by 1:00PM)
Description
Re-armable and detachable via a special lever, they simultaneously serve as a fuse and switch. Manufactured in accordance with US standards SAEJ1171 and CE 28846 “Vapor Proof”, capacity 3000 intervention cycles. Allowed voltage: max 48 V,
Upgraded version, electrical terminals at 5/16” (instead of 1/4”) to facilitate cable connection. The recessed model requires a simple circular hole for installation. IP66 Weatherproof. From 100 A to 200 A can also be used as a general battery disconnect.
Maximum voltage capacity:
5000A 14VDC;
3000A 28VDC;
1500A 48VDC.
Operating temperature: -40C° / 85C°.
8033137224058
02.710.10

Choose the model

Image Code Add to cart Variant Choice Version Max load A Price
G030201
add to cart
 Flush-mounted - 70A For recess fit 70 €116.55 €94.10
G030202
add to cart
 Flush-mounted - 100A For recess fit 100 €116.55 €94.10
G030203
add to cart
 Flush-mounted - 120A For recess fit 120 €116.55 €94.10
G030204
add to cart
 Flush-mounted - 150A For recess fit 150 €116.55 €94.10
G030205
add to cart
 Flush-mounted - 200A For recess fit 200 €116.55 €94.10
G030200
add to cart
 Flush-mounted - 50A For recess fit 50 €116.55 €94.10
G030211
add to cart
 External - 70A external 70 €116.55 €94.10
G030212
add to cart
 External - 100A external 100 €116.55 €94.10
G030214
add to cart
 External - 150A external 150 €116.55 €94.10
G030215
add to cart
 External - 200A external 200 €116.55 €94.10
G030210
add to cart
 External - 50A external 50 €116.55 €94.10
