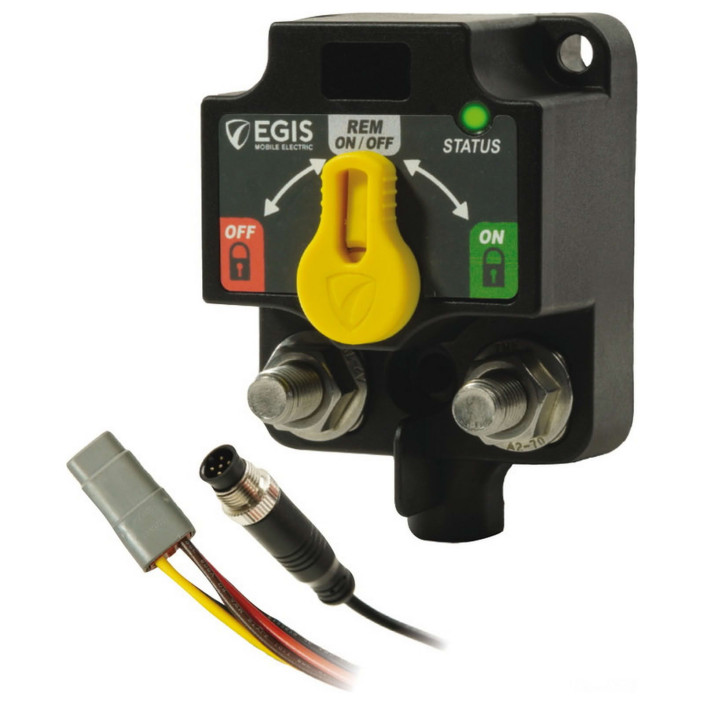

The XD NMEA 2000 series from Egis Mobile Electric is a high-performance system consisting of bistable battery disconnect relays and voltage-sensitive relays (VSR / ACR), with integrated control and monitoring via the NMEA 2000 network.
The devices are available in single, double, and triple configurations.
Dual devices available in one of the following configurations:
- Left relay / Right relay;
- Left relay / right VSR;
- Left VSR / Right Relay.
The configuration is factory-set and cannot be modified in the field.
Triple devices are available with a preset configuration (from left to right):
- Relay / VSR / Relay: Only the central position can be configured as a Relay or VSR.
In triple devices, the function of the central position is defined by the part number but can be modified in the field via DIP switch on the back of the device.
Configuration via DIP switches allows setting:
- NMEA 2000 network parameters (e.g., instance number, battery selection to monitor);
- VSR activation and deactivation voltage thresholds.
The operation is similar to other products in the XD series.
Each position can support:
- Battery disconnect relay;
- Voltage sensitive relay (VSR);
- Manual control ON / LOCK OFF;
- Local and remote LED status indication;
- Monitoring via NMEA 2000 network.
XD NMEA 2000 devices transmit directly on the network:
- Relay status;
- State of the manual override;
- Battery voltage.
