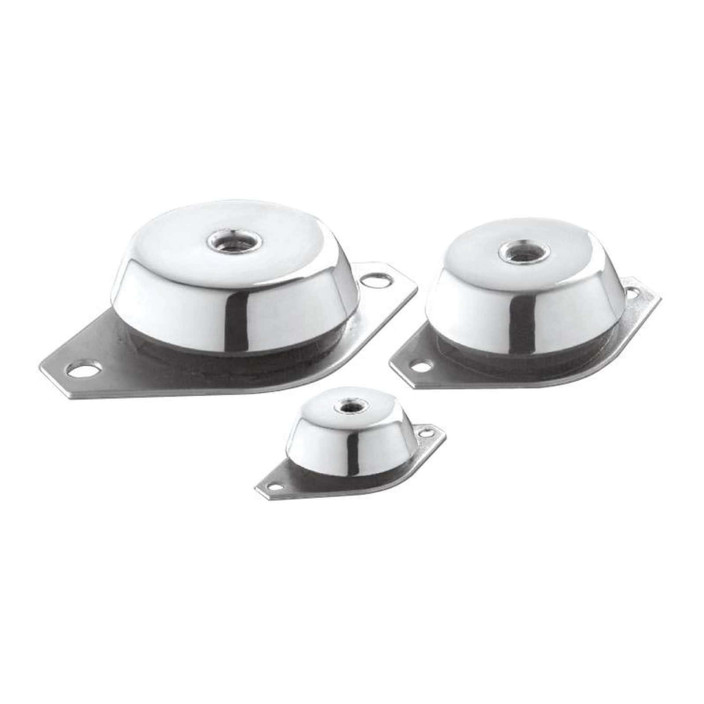

Elastic anti-vibration supports for inboard engines and generators, including counter-pads.

Name: Elastic anti-vibration supports for inboard engines and generators, including counter-pads.
Brand: Osculati
SKU: R8102
Price: 76.9 EUR
Availability: InStock

Product code: R810203

SS anti-vibration support 200 kg

Within 3 working days

€76.90 €79.90 -3.75%

Color choice

Stainless Steel
Galvanized Steel

Variant Choice

Selected variant code R810203

Estimated delivery to Italy: by Tue 22 Sep (for orders received by 1:00PM)

Update prices and delivery times for your country

Description

High-quality NBR rubber. Shore hardness 55 +/- 3, female thread.
Available in both galvanized steel and stainless steel.

EAN13 8033137156526

MPN 51.655.02

PDF Catalog Download (528.86KB)

Choose the model

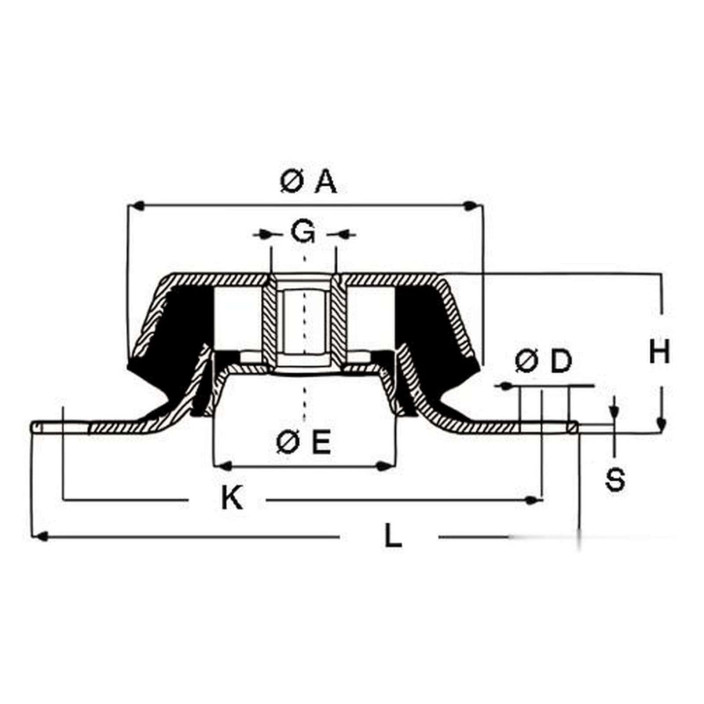

Code	Add to cart	Color choice	Variant Choice	Ø D mm	S mm	Ø A mm	Ø H mm	Ø E mm	Ø K mm	Ø L mm	Ø G mm (stud)	Max static nominal load kg	Prisoners * - Code	Studs * - measures mm	Variante	Price
R810203	add to cart	Stainless Steel	200 kg	8,2	2	62	30	25	78	100	10 MA	200	[51.657.10]	10x80	Stainless steel	~~€79.90~~ €76.90
R810204	add to cart	Stainless Steel	350 kg	10,2	3	90	42	44	100	130	16 MA	350	[51.657.16]	16x120	Stainless steel	~~€119.50~~ €113.80
R810205	add to cart	Stainless Steel	600 kg	16,2	4	115	46	61	142	190	18 MA	600	[51.657.18]	18x150	Stainless steel	~~€194.50~~ €186.50
R810210	add to cart	Galvanized Steel	100 kg	8,2	2	62	30	25	78	100	10 MA	100	[51.657.10]	10x80	Galvanized steel	~~€48.90~~ €47.30
R810213	add to cart	Galvanized Steel	200 kg	8,2	2	62	30	25	78	100	10 MA	200	[51.657.10]	10x80	Galvanized steel	~~€48.90~~ €47.30
R810211	add to cart	Galvanized Steel	350 kg	10,2	3	90	45	44	110	130	16 MA	350	[51.657.16]	16x120	Galvanized steel	~~€81.90~~ €78.90
R810214	add to cart	Galvanized Steel	350 kg	10,2	3	90	42	44	100	130	16 MA	350	[51.657.16]	16x120	Galvanized steel	~~€61.90~~ €59.60
R810215	add to cart	Galvanized Steel	600 kg	16,2	4	115	46	61	142	190	18 MA	600	[51.657.18]	18x150	Galvanized steel	~~€104.50~~ €101.20
R810299-A1	add to cart	-	absorbers 10x80 mm	-	-	-	-	-	-	-	-	-	-	-	-	€5.37
R810299-A2	add to cart	-	absorbers 16x120 mm	-	-	-	-	-	-	-	-	-	-	-	-	~~€13.44~~ €13.10
R810205-A1	add to cart	-	absorbers 18x150 mm	-	-	-	-	-	-	-	-	-	-	-	-	~~€14.10~~ €13.70
