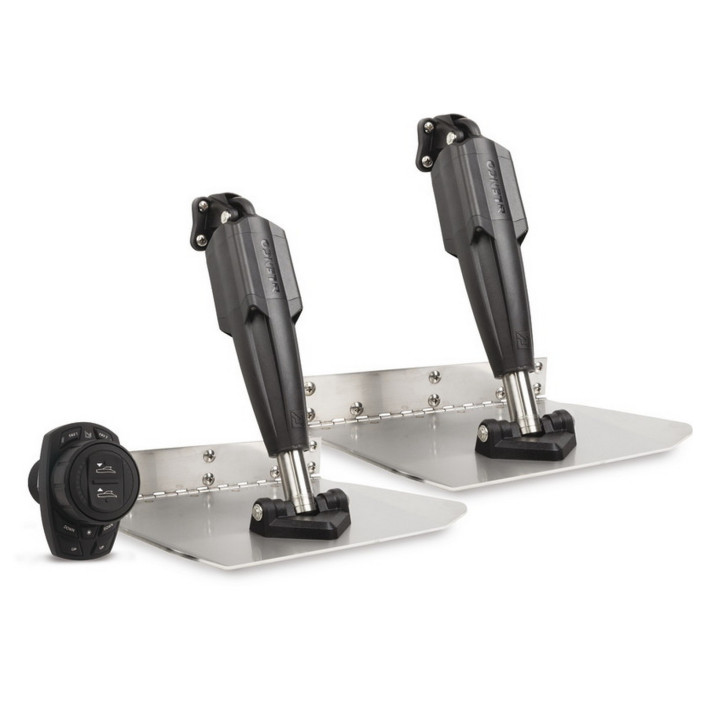

Next-generation flap system with advanced controller and control unit, fast and sturdy pistons for an excellent driving experience.
Faster and more powerful actuators developed in 2025 to ensure maximum trim correction performance in modern boats.
Piston pulling and pushing power 750/400 Kg versus 340/0 Kg of the previous version.
5 years of warranty on the complete system.
74% improvement in boat balancing by maintaining the hull at the optimal angle of heel despite moving weights or rough sea.
24% less impact on water makes navigation more pleasant and smooth.
Compatible with all engines equipped with a control unit. If Mercury engines are installed on the vessel, the system, through connection to the Mercury JBox, will be able to acquire more data and thus intervene to make navigation even more predictive and comfortable.
All models operate at 12v
The position of the flaps can be displayed on any "MFD" (multifunction display)
Auto Version:
When in 'auto' mode, the measurement unit interprets navigation conditions such as speed, accelerations, pitching, and rolling, and responds promptly by maintaining and keeping the hull at the best navigation angle.

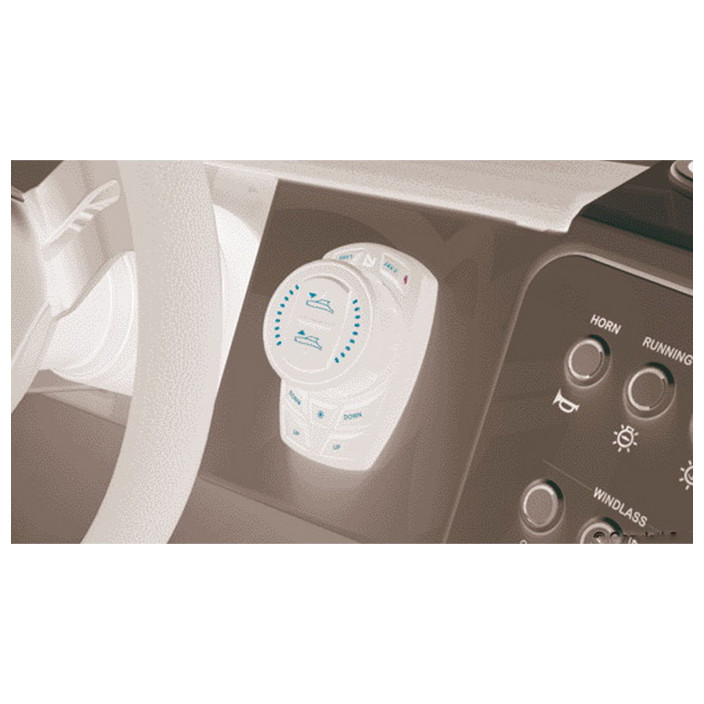

The pilot can still intervene and adjust the trim differently by using the intuitive ergonomic panel.
Assist Version:
Allows for intuitive and quick control of the trim by the pilot. Possibility to program and quickly recall two desired Flap positions.
The kit includes:
•
Faster and more powerful actuators developed in 2025 to ensure maximum trim correction performance in modern boats.
Piston pulling and pushing power 750/400 Kg versus 340/0 Kg of the previous version.
5 years of warranty on the complete system.
74% improvement in boat balancing by maintaining the hull at the optimal angle of heel despite moving weights or rough sea.
24% less impact on water makes navigation more pleasant and smooth.
Compatible with all engines equipped with a control unit. If Mercury engines are installed on the vessel, the system, through connection to the Mercury JBox, will be able to acquire more data and thus intervene to make navigation even more predictive and comfortable.
All models operate at 12v
The position of the flaps can be displayed on any "MFD" (multifunction display)
Auto Version:
When in 'auto' mode, the measurement unit interprets navigation conditions such as speed, accelerations, pitching, and rolling, and responds promptly by maintaining and keeping the hull at the best navigation angle.
The pilot can still intervene and adjust the trim differently by using the intuitive ergonomic panel.
Assist Version:
Allows for intuitive and quick control of the trim by the pilot. Possibility to program and quickly recall two desired Flap positions.
The kit includes:
•
