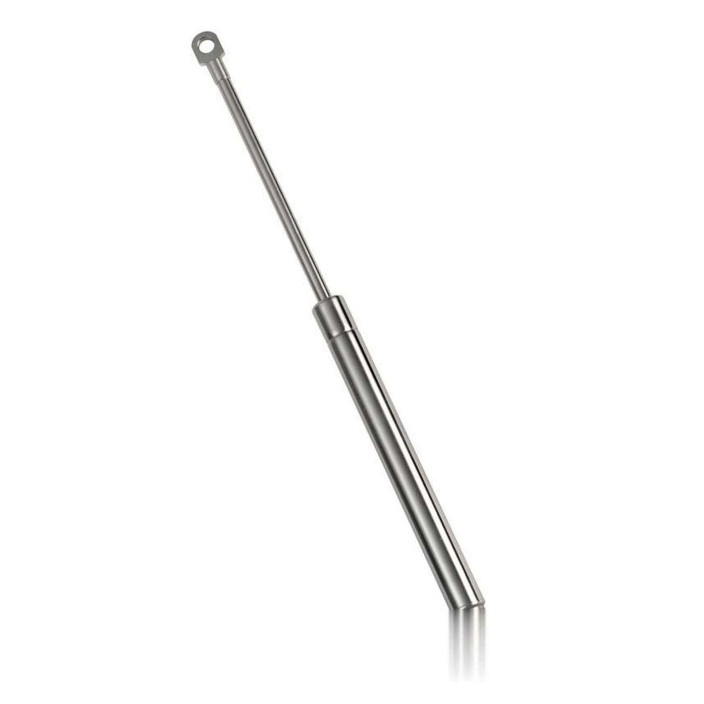

Eye-eye stainless steel gas spring with adjustable pressure setting

Name: Eye-eye stainless steel gas spring with adjustable pressure setting
Brand: Osculati
SKU: F3717
Price: 47.8 EUR
Availability: InStock

Product code: F371700

Gas spring AISI 316

Within 24 hours

€47.80 €49.90 -4.21%

Variant Choice

Selected variant code F371700

Estimated delivery to Italy: by Wed 4 Nov (for orders received by 1:00PM)

Update prices and delivery times for your country

Description

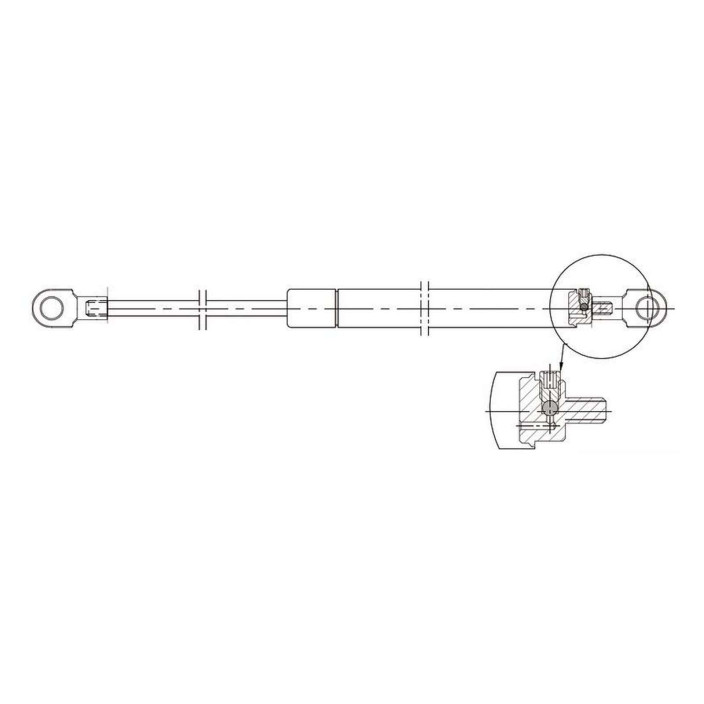

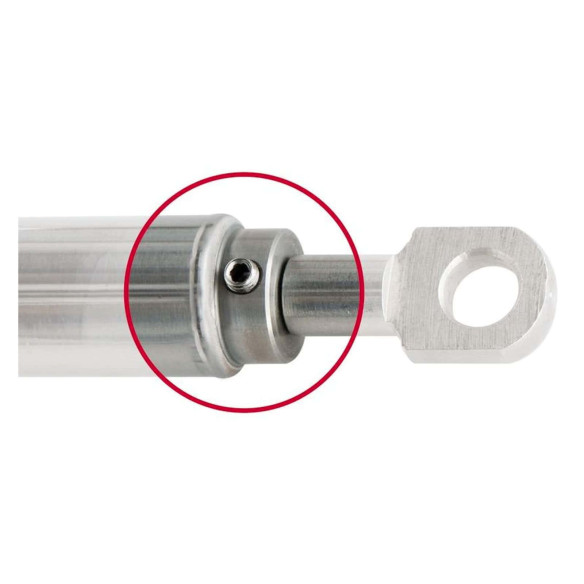

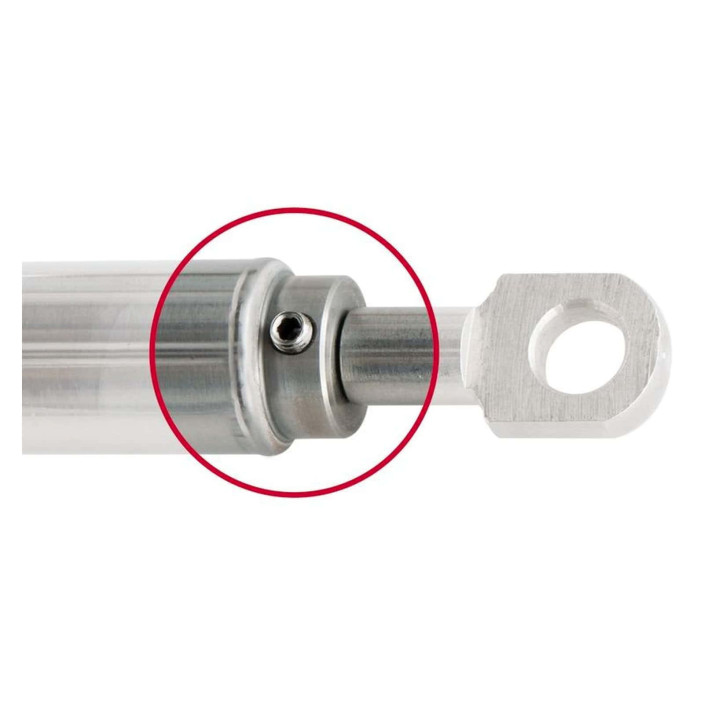

Fitted with vent valve for perfect setting of the elevated standard push-in force of the spring depending on the weight of the hatch / peak. Setting is possible only when fully extended. Fitted with stainless steel end eyelets, 8-mm Ø bore, and key for the vent valve.

EAN13 8033137126185

MPN 38.010.00

PDF Catalog Download (552.93KB)

Choose the model

Code	Add to cart	Variant Choice	Stroke mm	Open mm	Reaction kg	Ø body mm	Ø stem mm	Price
F371700	add to cart	272 mm - 40 kg	81	272	40	15	6	~~€49.90~~ €47.80
F371701	add to cart	377 mm - 70 kg	132	377	70	18	8	~~€61.90~~ €59.30
F371702	add to cart	522 mm - 70 kg	205	522	70	18	8	~~€71.90~~ €68.80
F371703	add to cart	622 mm - 70 kg	255	622	70	18	8	~~€77.90~~ €75.00
F371704	add to cart	752 mm - 120 kg	315	752	120	23	10	~~€114.50~~ €109.70
F371705	add to cart	972 mm - 160 kg	415	972	160	28	14	~~€174.50~~ €167.90
