LEWMAR Low Profile hatch

Name: LEWMAR Low Profile hatch
Brand: Lewmar
SKU: A1065
Price: 329.5 EUR
Availability: InStock

Product code: A106503

LEWMAR Lukeneinstieg Low Profile

Within 3 working days

€329.50 €339.50 -2.95%

Variant Choice

Selected variant code A106503

Estimated delivery to Italy: by Fri 6 Nov (for orders received by 1:00PM)

Update prices and delivery times for your country

Description

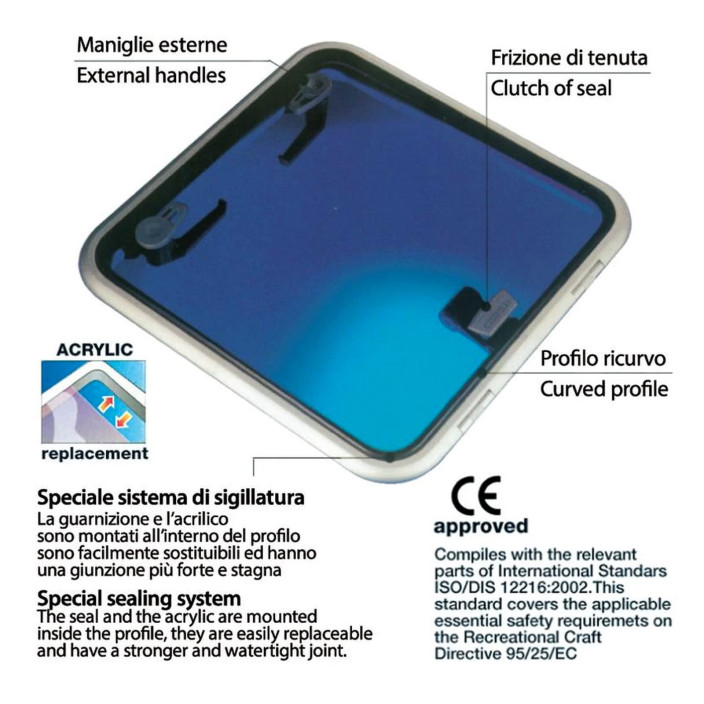

The profile sticks out as little as 25 mm from the deck. CE-approved for AREA 2. External handles allow the hatch to be opened from on the deck, friction levers to hold the lid open in any position up to 95°. Anodized aluminium frame for corrosion resistance and curved upper frame profile for strength. Large quantities available in white or mirror-polished aluminium finish.

MPN 19.410.03

PDF Catalog Download (779.56KB)

Choose the model

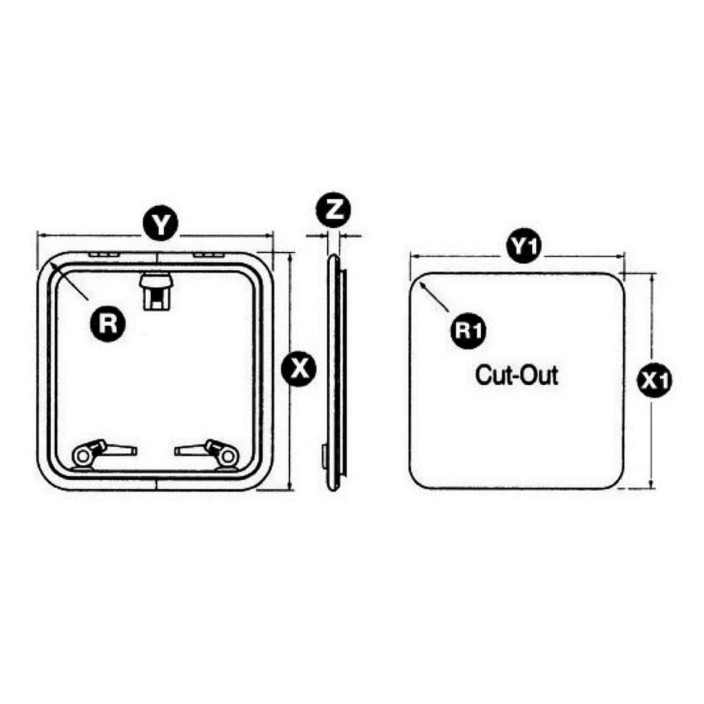

Code	Add to cart	Variant Choice	Manhole with	Size	Weight	Recessed flange protrusion mm	dimensions outside mm - X	dimensions outside mm - Y	dimensions outside mm - Z	dimensions outside mm - R	dimensions cutting dimensions (vary using the counterflange) mm	dimensions cutting dimensions (vary using the counterflange) mm	dimensions cutting dimensions (vary using the counterflange) mm	Acrylic thickness mm	Finish counterflange + mosquito net	Price
A106503	add to cart	Size 03 - With self-supporting door	portello autoreggente	03	1,6	15	246	301	25	72,5	176	231	42,5	8	-	~~€339.50~~ €329.50
A106510	add to cart	Size 10 - With self-supporting door	portello autoreggente	10	2,2	15	330	330	25	72,5	260	260	42,5	8	-	~~€379.50~~ €371.40
A106520	add to cart	Size 20 - With self-supporting door	portello autoreggente	20	2,3	15	272	417	25	72,5	202	347	42,5	8	[19.413.20]	~~€369.50~~ €360.00
A106530	add to cart	Size 30 - With self-supporting door	portello autoreggente	30	3,9	15	397	527	25	72,5	327	457	42,5	8	[19.413.30]	~~€564.00~~ €551.90
A106540	add to cart	Size 40 - With self-supporting door	portello autoreggente	40	4,6	15	491	491	25	72,5	421	421	42,5	8	[19.413.40]	~~€664.00~~ €651.10
A106541	add to cart	Size 41 - With self-supporting door	portello autoreggente	41	2,5	15	246	491	25	72.5	176	421	42.5	8	-	~~€484.50~~ €472.70
A106544	add to cart	Size 44 - With self-supporting door	portello autoreggente	44	4,8	15	512	512	25	72,5	442	442	42,5	8	[19.413.44]	~~€629.00~~ €615.20
A106554	add to cart	Size 54 - With self-supporting door	portello autoreggente	54	4,9	15	462	577	25	72,5	392	507	42,5	8	[19.413.54]	~~€639.00~~ €626.10
A106560	add to cart	Size 60 - With self-supporting door	portello autoreggente	60	6,4	15	577	577	25	72,5	507	507	42,5	10	[19.413.60]	~~€729.00~~ €716.30
A106531	add to cart	Size 30 - With retaining arm	Support Arm	30	3,9	15	397	527	25	72,5	327	457	42,5	8	[19.413.30]	~~€639.00~~ €624.00
A106545	add to cart	Size 44 - With retaining arm	Support Arm	44	4,8	15	512	512	25	72,5	442	442	42,5	8	[19.413.44]	~~€654.00~~ €638.30
A106561	add to cart	Size 60 - With retaining arm	Support Arm	60	6,4	15	577	577	25	72,5	507	507	42,5	10	[19.413.60]	~~€734.00~~ €721.50
