Remote electrocontrolled ball valves PN40

Name: Remote electrocontrolled ball valves PN40
Brand: Osculati
SKU: I2752
Price: 343.9 EUR
Availability: InStock

Product code: I275200

Panel

Within 3 working days

€343.90 €354.50 -2.99%

Variant Choice

Selected variant code I275200

Estimated delivery to Italy: by Fri 6 Nov (for orders received by 1:00PM)

Update prices and delivery times for your country

Description

Made of nickel-plated brass, full flow with reversible electric servomotor. Revolution time: 14 seconds. Emergengy manual control in compliance with ISO228. ON-OFF remote control panel with safety fuse, control of up to 10 valves at the same time.

EAN13 8033137099991

MPN 17.240.02

PDF Catalog Download (406.12KB)

Choose the model

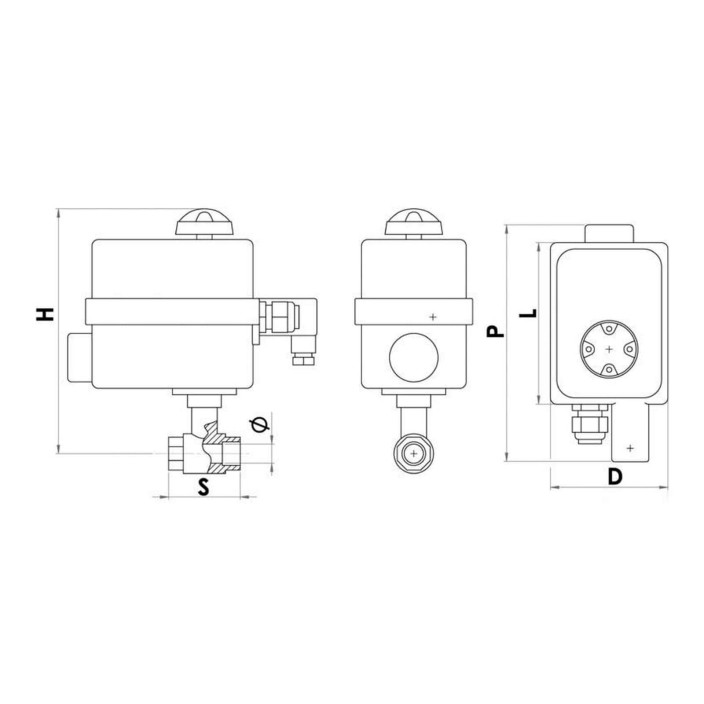

Code	Add to cart	Variant Choice	V	D	L	H	Ø	S	P	Thread	Consumption W	Protection degree	dimensions Control panel	Variante	Price
I275200	add to cart	Complete Valve - 1/2"	24	62 mm	100 mm	162 mm	15 mm	56 mm	125 mm	1/2"	4	IP42	75x60 mm	Valve with control panel	~~€354.50~~ €343.90
I275201	add to cart	Complete Valve - 3/4"	24	62 mm	100 mm	165 mm	20 mm	66 mm	125 mm	3/4"	4	IP42	75x60 mm	Valve with control panel	~~€364.50~~ €354.30
I275202	add to cart	Complete Valve - 1"	24	62 mm	100 mm	171 mm	25 mm	75 mm	125 mm	1"	4	IP42	75x60 mm	Valve with control panel	~~€374.50~~ €367.10
I275203	add to cart	Complete Valve - 1.5"	24	92 mm	137 mm	181 mm	32 mm	85 mm	195 mm	1" 1/4	15	IP65	75x60 mm	Valve with control panel	~~€979.00~~ €958.70
I275204	add to cart	Complete Valve - 1.5"	24	92 mm	137 mm	187 mm	39 mm	97 mm	195 mm	1" 1/2	15	IP65	75x60 mm	Valve with control panel	~~€999.00~~ €978.50
I275205	add to cart	Complete Valve - 2"	24	92 mm	137 mm	195 mm	48 mm	109 mm	195 mm	2"	15	IP65	75x60 mm	Valve with control panel	~~€1,049.00~~ €1,026.50
I275210	add to cart	Valve Only - 1/2"	24	62 mm	100 mm	162 mm	15 mm	56 mm	125 mm	1/2"	4	IP42	75x60 mm	Valve, only	~~€389.50~~ €327.90
I275211	add to cart	Valve only - 3/4"	24	62 mm	100 mm	165 mm	20 mm	66 mm	125 mm	3/4"	4	IP42	75x60 mm	Valve, only	~~€404.50~~ €338.30
I275212	add to cart	Valve only - 1"	24	62 mm	100 mm	171 mm	25 mm	75 mm	125 mm	1"	4	IP42	75x60 mm	Valve, only	~~€419.50~~ €351.10
I275213	add to cart	Valve only - 1.5"	24	92 mm	137 mm	181 mm	32 mm	85 mm	195 mm	1" 1/4	15	IP65	75x60 mm	Valve, only	~~€1,114.00~~ €941.90
I275214	add to cart	Valve only - 1.5"	24	92 mm	137 mm	187 mm	39 mm	97 mm	195 mm	1" 1/2	15	IP65	75x60 mm	Valve, only	~~€1,139.00~~ €961.20
I275215	add to cart	Valve only - 2"	24	92 mm	137 mm	195 mm	48 mm	109 mm	195 mm	2"	15	IP65	75x60 mm	Valve, only	~~€1,194.00~~ €1,010.10
I275220	add to cart	Panel, only	24	62;92 mm	100;137 mm	162;165;171;181;187;195 mm	15;20;25;32;39;48 mm	109;56;66;75;85;97 mm	125;195 mm	1";1" 1/2;1" 1/4;1/2";2";3/4"	15;4	IP42;IP65	75x60 mm	-	~~€34.90~~ €33.40
