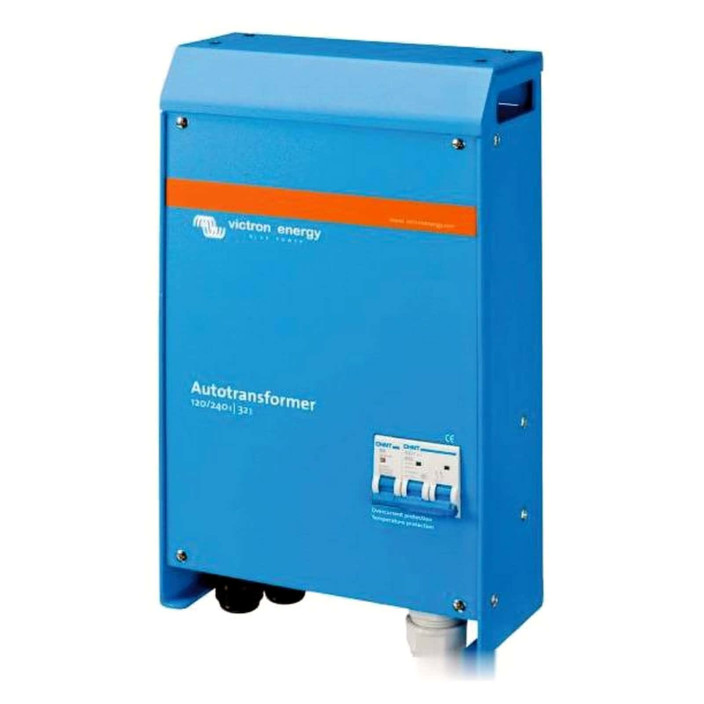

VICTRON autotransformer
VICTRON autotransformer
Victron Energy

VICTRON 120/240V 32/100A isolation autotransformer

Product code: E475200
VICTRON autotransformer
Within 3 working days
€580.90 €594.00 -2.21%
Variant Choice
E475200

Estimated delivery to Italy: by Fri 6 Nov (for orders received by 1:00PM)
Description
It is an electrical transformer with only one winding that has at least three taps where electrical connections are made. It drastically reduces ohmic losses and eliminates the need of electrical isolation between windings but, unlike dual-winding transformers, it doesn’t provide electrical isolation between the primary and secondary side of the transformer. It is often used to step up or step down voltages in the 110/120 volt range and voltages in the 220/240 volt range. For example providing 120V from 240V input, allowing equipment designed for 120 volts to be used with a 240 volt supply.
8033137090011
14.264.10

Choose the model

Image Code Add to cart Variant Choice dimensions mm Weight Input/Output Voltage Maximum input current (240V) Price
E475200
add to cart
 32A 375x214x110 10 120/240 V; 50/60 Hz 32 A €594.00 €580.90
E475201
add to cart
 100A 425x214x110 14 120/240 V; 50/60 Hz 100 A €669.00 €655.80
